1.8. Intro to Gephi & Visualize clusters

Duration: 45 min

Goals

• Learn how to use Gephi
• Explore a directed network
• Export a network map
• Annotate clusters

You need

• Gephi installed on your computer

Data

Download this GEXF:

energy-conversion-wiki-cat-depth-1.gexf

It contains 787 Wikipedia pages about energy conversion (1 level of subcategories) connected by their hyperlinks.

Note: you can obtain this network by getting all the pages of the category with the notebook 🍉 Wikipedia category to article list then feeding that list into this other notebook: 🍣 Wikipedia articles to hyperlinks network (slow and clean) (10 min to compute). With two levels of subcategories it gives 3,629 articles, which is a bit big for this tutorial. Here is the  file though.

Check Gephisto

As an entry point to network visualization, you may try Gephisto.

This tool makes a network map in one click, but as it cannot guess what you want, it takes decisions in your place. The result might not be that useful to you. You can always retry, though. You may obtain images like this one:

Let’s move to a more flexible tool: Gephi.

Gephi video tutorials

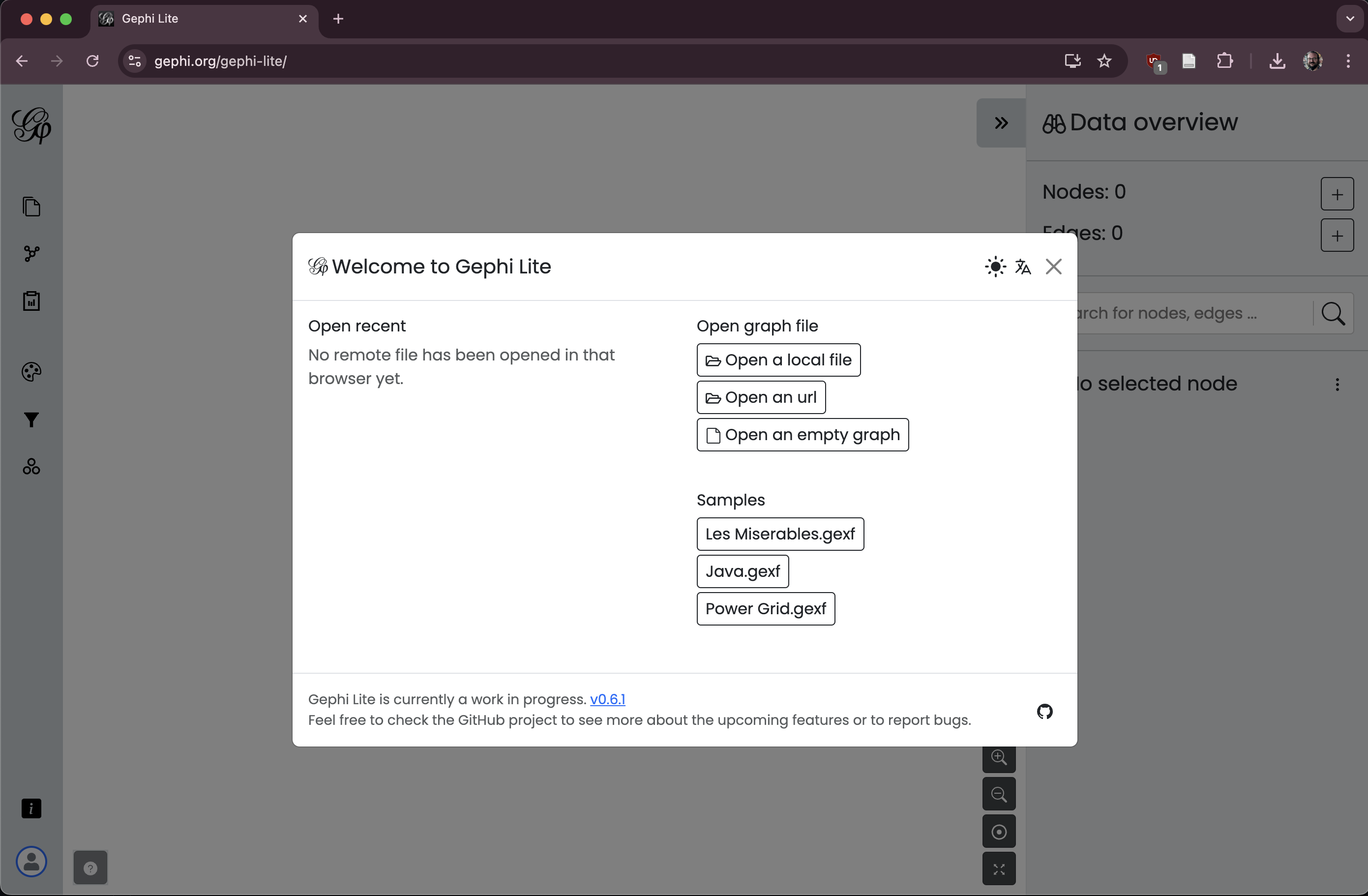

If you have not installed Gephi, then download the latest version from the website: Gephi.org.

Watch these two videos about how to use Gephi to visualize a network (15 minutes total). You may want to try replicating what they do with the network you just downloaded. Your Gephi is more recent, and you will observe some minor changes.

Visualize the network

Use Gephi to produce a network map.

Apply the Force Atlas 2 algorithm with the default settings but two modifications:

• Stronger gravity activated
• Gravity set to 0.05

These modifications ensure that disconnected nodes (“islands”) do not drift too far, which causes problems down the line.

Tip: if the nodes jiggle too much, you can calm them down by lowering the Tolerance (speed) setting.

You have to stop the algorithm manually when it has converged (just eyball that it does not significantly move anymore).

 Your node placement will differ because the layout is not deterministic.

In the Statistics panel, run the Modularity algorithm with default settings. It detects clusters.

Color the nodes to highlight clusters visually. In the Appearance panel, click on the Nodes button, click on the Color icon (a palette), click on the Partition button, and in the drop-down list, pick Modularity Class. Then click on the Apply button at the bottom of the panel. This colors each node according to the cluster detected by the modularity clustering algorithm.

 Your clusters will differ because the modularity clustering algorithm is not deterministic either.

Set the node size as a function of the indegree (the number of edges coming from other nodes): in the Appearance panel, click on the Nodes button, click on the Size icon (the three circles), click on the Ranking button, then in the drop-down list, select In-Degree, set the Min size to 3 and the Max size to 15, then click on the Apply button.

Bonus

If you feel comfortable, you may try doing the following:

• Generate a different color palette for the modularity class.
• Apply the Force Atlas 2 layout with the LinLog mode enabled, which will require you to drastically lower the Scaling and Gravity ratios.
• Apply the Force Atlas 2 layout with Prevent Overlap enabled as a finishing touch to separate the nodes better.
• Alternatively, assuming that the labels do not overlap too much, you may use the layout Label Adjust to unpack the labels artificially.
• Display node labels with the Size mode selector set to Node size (it’s the black A in the bottom bar).

Export an image

Let’s export a PNG image of the network map.

• Go to the Preview page (third button on top of Gephi)
• In the drop-down list, pick the preset Default curved (curved edges are for directed networks)
• Click on the Refresh button on the bottom of the side panel

At this point you should see something like this:

Remark that there are so many labels that we cannot read them properly. We will mitigate the problem by changing the font size.

• In the Settings sidebar, under the Node Labels section, ensure that the Proportional size setting is enabled (bigger nodes have a bigger label)
• In the same section, in the Font row, click the button on the right labeled ....
• Change to a smaller font size, click OK, click on the Refresh button at the bottom of the sidebar, and check that it is good enough. Zoom the view if you need. The biggest nodes should be readable. If not, iterate. Some amount of overlap should be expected.

For us, Arial 4 was good enough.

Then export the image as a PNG:

• Click on Export: SVG/PDF/PNG on the bottom-left of the screen
• Set a file name
• Select the file type PNG
• Click on Options... and set a file size of 2048px x 2048px
• Save the file

You should obtain a file similar to that one:

Note: it is perfectly acceptable to not show lables at all. Just uncheck Show labels in the settings. In this case, you need to add relevant labels as annotations later on.

Annotate the visualization

Import the exported image into Google Slide and annotate the clusters.

You may want to comment on:

• The relative size of the clusters
• The relative density of the clusters (densely packed, or sparse)
• The position of the clusters (on the size, on the periphery)
• The distance between the clusters, which relates to how connected they are. Are some clusters more intensely connected?

Link these observations with the topic of energy conversion. Clusters can be used to identify the subtopics of energy conversion. Are certain subtopics more important than others? In which way? Can you compare the subtopics?

Prioritize the most interesting observations in your annotations.

The beginning of an annotation could look something like this:

You can find a template here - feel free to make a copy and continue annotating, or simply start your own from scratch.

Documents produced

Keep somewhere, for sharing, the following document:

• The annotated network (JPEG or PNG)

Next tutorial

Take a break before you get to this:

 1.9. Visualize a bipartite network (30 min)

Relation to course readings

• The principles and concepts of Visual Network Analysis (VNA) are covered in Chapter 2: What is visual network analysis in Jacomy, M. (2021). Situating Visual Network Analysis
• And in Chapter 7: Visual network analysis in Venturini, T. & Munk, A.K. (2021). Controversy Mapping: A Field Guide
• The intricacies of Wikipedia and the different ways in which the platform may be reappropriated for controversy analysis are covered in Weltevrede, E., & Borra, E. (2016). Platform affordances and data practices: The value of dispute on Wikipedia Big Data & Society, 3(1).
• A similar network is described in Figure 48 of Venturini, T. & Munk, A.K. (2021). Controversy Mapping: A Field Guide:

Network of pages from the “Circumcision” category on Wikipedia connected by all hyperlinks between them. Pages about male circumcision group on the left (dark gray with white center), while pages about female circumcision (known here as female genital mutilation) group on the right (white with black center)
